MKR Radio

About MKR Radio
Since 1991, my passion for radio signals has driven me to create a low-power FM (Frequency Modulated) station. Initially it was mono; a few months later I succeeded in transmitting in stereo with a power output of 1 W. At that time, the audio equipment did not include much technology.
Today the station is far more advanced: the signal is generated through an audio card with the aid of software (StereoTool – www.thimeo.com

Software & Hardware used to bring the radio station to life—–

StereoTool — Audio & FM signal processing

SDR# (SDRsharp) — FM signal monitoring

FM Transmitter Control Software

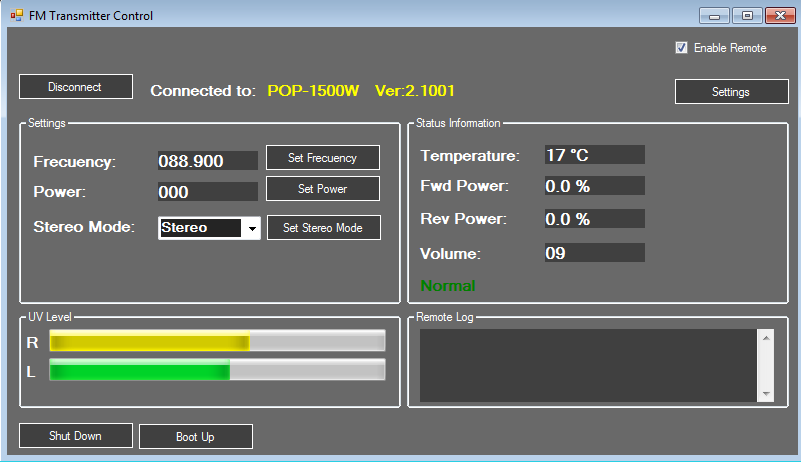

Our FM Transmitter Control software is a powerful and intuitive application designed to remotely manage and monitor professional FM broadcast transmitters. Developed by Make It Real Technology, this tool provides a clean and efficient interface that allows operators to configure transmission parameters, supervise system status, and ensure stable on-air performance in real time.

Key Features

Real-time Monitoring
View essential telemetry such as temperature, forward power, reflected power, volume level, and system status.
Precise Transmission Control
Adjust frequency, output power, and stereo/mono mode with direct commands to the transmitter.
Remote Operation
Includes a secure remote-enable function, allowing full operation from anywhere with an authorized connection.
UV Level Visualization
Dual-channel analog level bars (Left/Right) provide instant feedback for audio modulation.
Event & Activity Log
A built-in remote log window helps track events, received data, and system activity for diagnostics.
Power Management
Integrated buttons to boot up or shut down the transmitter unit safely.

Designed for Reliability

This software is engineered to operate flawlessly with the POP-1500W series (and compatible models), ensuring consistent communication, fast response, and professional-grade reliability ideal for FM broadcast stations.

If you are interested in this software or would like a custom solution, feel free to reach out at:

📧 heriberto@makeitrealtechnology.com

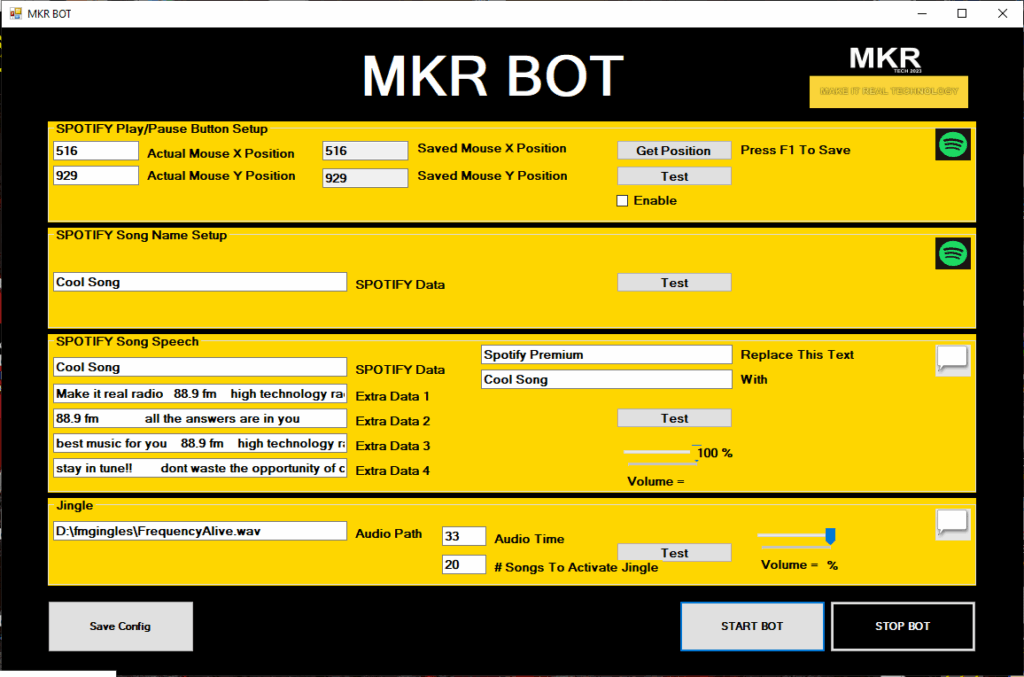

The MKR BOT software was created to automate and enhance the radio broadcast experience by integrating with Spotify Premium.
It allows precise control of playback, song tracking, and real-time speech automation. The bot detects the current song playing and can automatically insert custom jingles, station IDs, and voice lines between tracks.

Designed with reliability and automation in mind, MKR BOT manages mouse actions, song data, and jingles fully automatically — reducing manual tasks and keeping the station always on air.
It represents a blend of radio creativity and smart automation, engineered by Make It Real Technology.

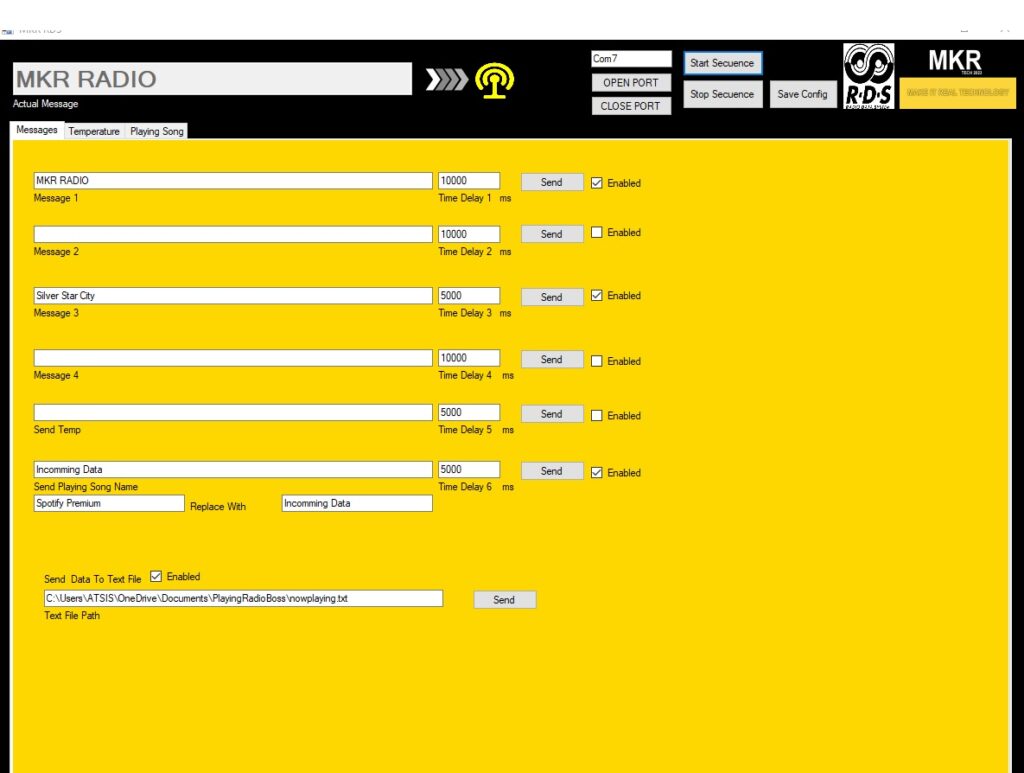

MKR RDS

The MKR RDS software was developed to automate and control the transmission of RDS (Radio Data System) information for FM broadcasting.
It allows the user to configure and schedule custom messages, temperature readings, and “Now Playing” song data, each with an independent time delay, providing full flexibility and precision.

MKR RDS communicates via the serial (COM) port with an external Pira 32 RDS Encoder, which modulates and injects the RDS data into the FM carrier.
The software can also synchronize with automation tools such as RadioBoss, automatically updating the dynamic text displayed on RDS-compatible receivers in real time.

Created entirely by Make It Real Technology, MKR RDS combines software engineering, radio automation, and broadcast innovation, bringing intelligent control and seamless integration to modern FM radio stations.

If you are interested in this software or would like a custom solution, feel free to reach out at:

📧 heriberto@makeitrealtechnology.com

Radio Mobile — FM transmission distance calculations
